RAMVAC builds purpose-engineered hydroexcavation trucks designed to perform in any environment. From compact units for urban projects to high-capacity trucks for industrial work, every RAMVAC model delivers powerful digging performance with unmatched safety, reliability, and ease of operation.
Request a Demo
Whether you’re daylighting utilities, trenching across tight right-of-ways, or digging in freezing conditions, RAMVAC units are built to handle the toughest environments. Our lineup includes versatile compact models, mid-size workhorses, and heavy-duty units engineered for large-scale excavation.
Every RAMVAC truck is designed around the same core principles: safety, performance, efficiency, and operator-first usability.
12-Yard Debris Body + 1,300-Gallon Water Capacity
Intuitive, One-Touch Operating System
Winter Package for Zero Downtime
Simplified, Service-Friendly Design

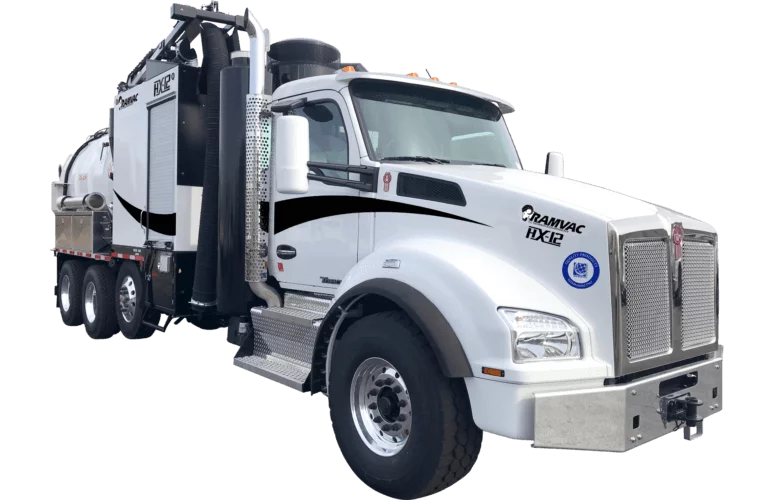

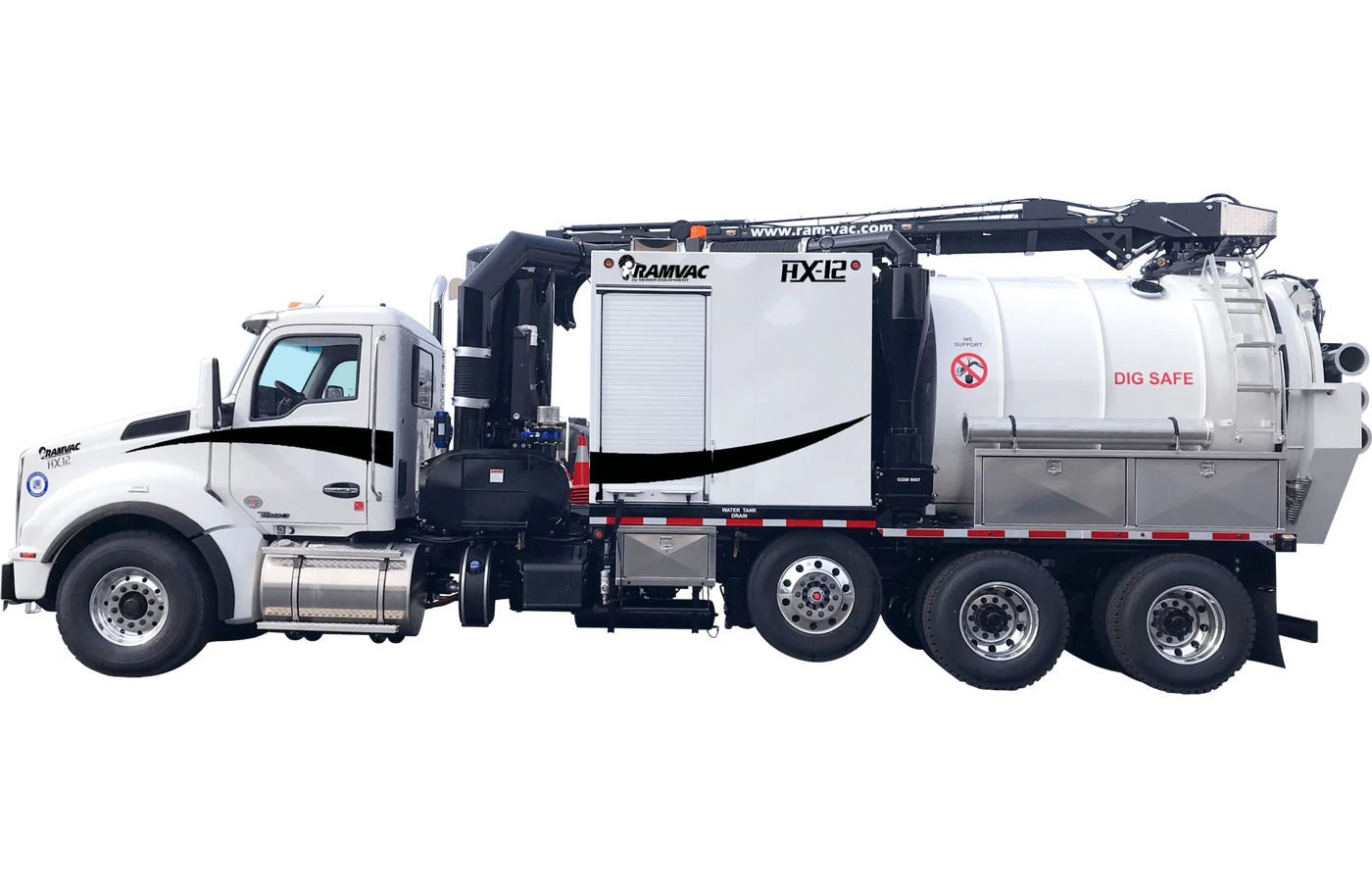

The RAMVAC HX-12 is our most trusted hydroexcavator, combining digging power, operator-first controls, and all-weather reliability in a single, versatile platform. Its balance of capacity, maneuverability, and durability makes it the preferred choice for municipal and industrial crews.
See why the HX-12 is recognized as one of the most dependable units in the field.
REQUEST A DEMOFrom compact hydroexcavators to full-size trucks, RAMVAC units are engineered for power, simplicity, and reliability. Discover our most popular models below.
Hydro Excavator Truck

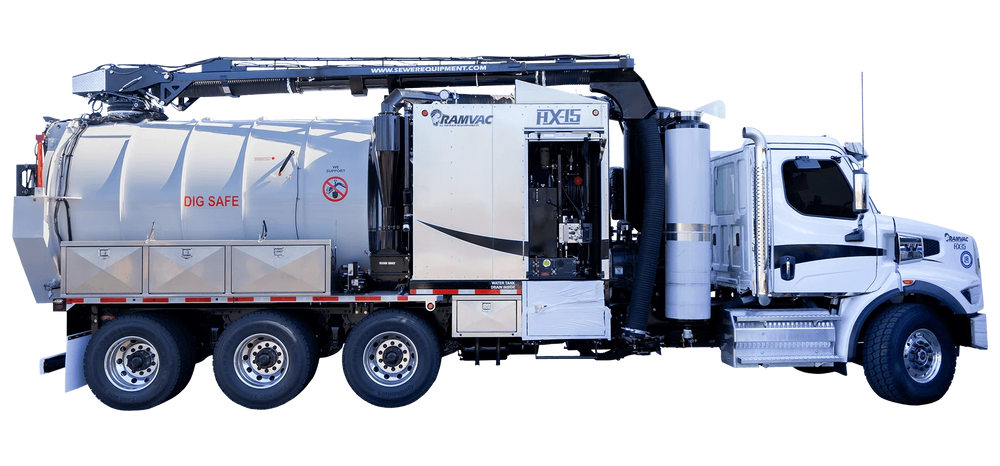

The RAMVAC HX-15 is the “Big Daddy” of the RAMVAC family, however, you do not have to compromise for that size either. We still feature a footprint 36” shorter and a payload capacity 2500 lbs greater than our competitors. This tridem axle configuration unit offers a 15-cubic-yard debris body, a boom reach of 21 to 26 feet with a 320° working radius.
The 8″ vacuum system for these units feature a 4400 CFM and 18″ blower capacity, with the ability to do 5400 CFM and 28″ blower, well as cyclone separation, a vacuum enhancer, directional discharge, hydrostatic blower drives, and a 10-micron final filter. For the water system, this hydro-vac truck features a 1,300-gallon water capacity, a 10 GPM @ 2500 PSI pump, 400,000 BTU water heater, all in an 80,000 BTU heated enclosure.
The HX-15 also boasts compact footprints, NEMA rated electrical systems, debris blow-off systems, and fully hydraulic power trains for superior reliability. For customers looking to dig with air, you have the option to add a 185 CFM @ 150 PSI air compressor to your unit.
Hydro Excavator Truck

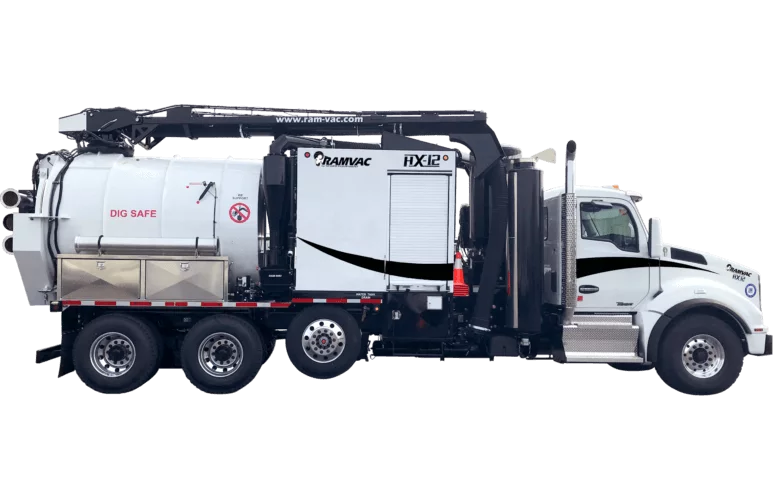

The mainstay of the RAMVAC family! We feature a footprint 36” shorter and a payload capacity 2500 lbs greater than our competitors. This tandem-axle configuration unit offers a 12-cubic-yard debris body, a boom reach of 18 to 23 feet with a 320° working radius.
The 8″ vacuum system for these units feature a 4400 CFM and 18″ blower capacity, with the ability to do 5400 CFM and 28″ blower, well as cyclone separation, a vacuum enhancer, directional discharge, hydrostatic blower drives, and a 10-micron final filter. For the water system, the HX-12 features a 1,300-gallon water capacity, a 10 GPM @ 2500 PSI pump and a 400,000 BTU water heater all in an 80,000 BTU heated enclosure.
The HX-12 also boasts compact footprints, NEMA rated electrical systems, debris blow-off systems and fully hydraulic power trains for superior reliability. For customers looking to dig with air, you have the option to add a 185 CFM @ 150 PSI air compressor to your unit.

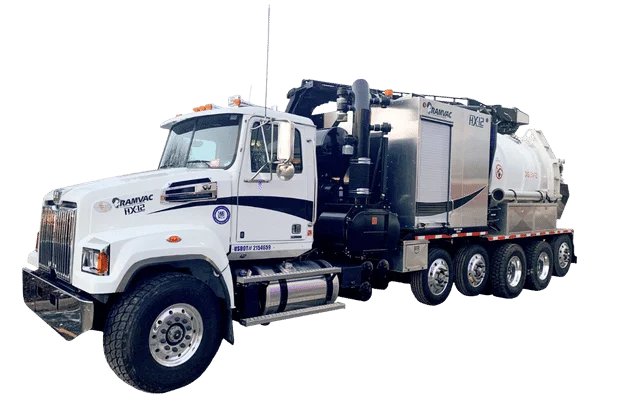

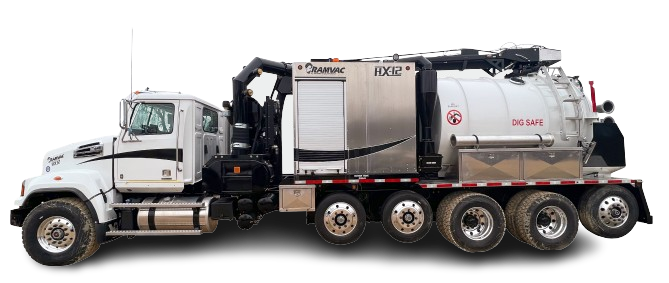

Quint Axle Hydro Excavator Truck
A variation on the HX-12, the mainstay of the RAMVAC family, the quint axle offers the benefits of the HX-12 but with two additional axles. More axles means a greater payload capacity. Yes, the HX-12 already has a larger payload capacity than our competitors, but with a quint axle, the payload is the largest legal payload in the industry at over 27,000 pounds.
The greater weight distribution also helps comply with federal bridge laws. This tandem-axle configuration unit offers a 12-cubic-yard debris body, a boom reach of 18 to 23 feet with a 320° working radius. The 8″ vacuum system for these units feature a 4400 CFM and 18″ blower capacity, with the ability to do 5400 CFM and 28″ blower, well as cyclone separation, a vacuum enhancer, directional discharge, hydrostatic blower drives, and a 10-micron final filter. For the water system, the HX-12 features a 1,300-gallon water capacity, a 10 GPM @ 2500 PSI pump and a 400,000 BTU water heater all in an 80,000 BTU heated enclosure.
The HX-12 also boasts compact footprints, NEMA rated electrical systems, debris blow-off systems and fully hydraulic power trains for superior reliability. For customers looking to dig with air, you have the option to add a 185 CFM @ 150 PSI air compressor to your unit.

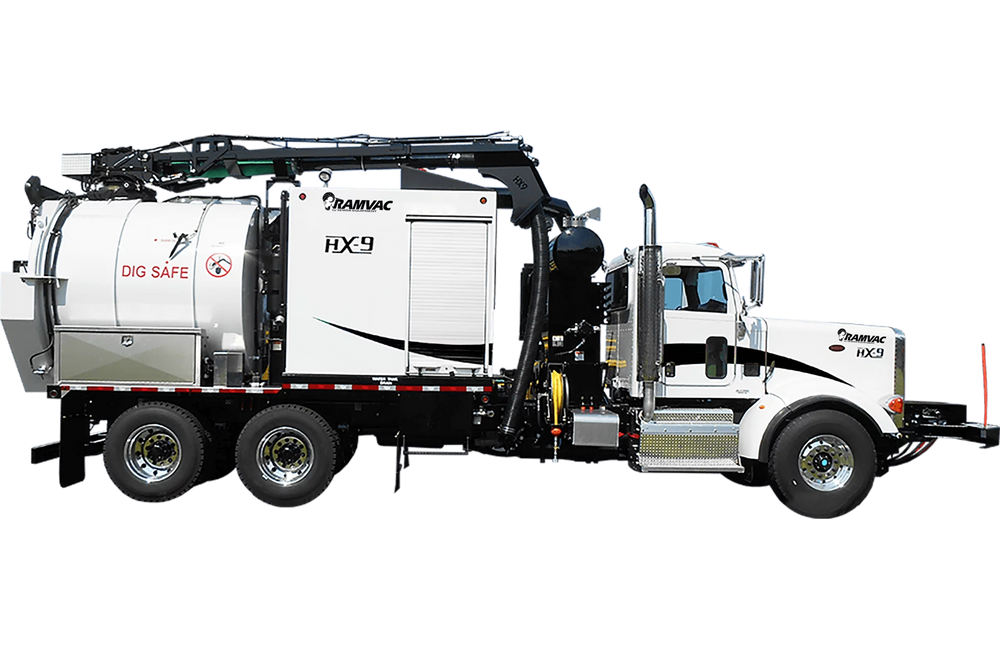

The 8″ vacuum system for these units feature a 4400 CFM and 18″ blower capacity, with the ability to do 5400 CFM and 28″ blower, well as cyclone separation, a vacuum enhancer, directional discharge, hydrostatic blower drives, and a 10-micron final filter. For the water system, the HX-9 features a 1,300-gallon water capacity, a 10 GPM @ 2500 PSI pump and a 400,000 BTU water heater all in an 80,000 BTU heated enclosure.
The HX-9 also boasts compact footprints, NEMA rated electrical systems, debris blow-off systems, and fully hydraulic power trains for superior reliability. For customers looking to dig with air, you have the option to add a 185 CFM @ 150 PSI air compressor to your unit.
The 6″ vacuum system for these units features a 3000CFM and 8″ blower capacity, as well as cyclone separation, a vacuum enhancer, directional discharge, hydrostatic blower drives, and a 10-micron final filter. For the water system, the HX-6 hydro-vac truck features a 650-gallon water capacity, a 10GPM @ 2500PSI pump, 400,000BTU water heater, all in an 80,000 BTU heated enclosure.
The HX-6 also boasts compact footprints, NEMA-rated electrical systems, debris blow-off systems, and fully hydraulic power trains for superior reliability. For customers looking to dig with air, you have the option to add a 185CFM @ 150PSI air compressor to your hydro excavation truck unit.
The 6″ vacuum system for these units feature a 3000CFM and 8″ blower capacity, as well as cyclone separation, a vacuum enhancer, directional discharge, hydrostatic blower drives, and a 10-micron final filter. For the water system, the HX-3 features a 325-gallon water capacity, a 10 GPM @ 2500 PSI pump, a 400,000 BTU water heater, all in an 80,000 BTU heated enclosure.
The HX-3 also boasts compact footprints, NEMA rated electrical systems, debris blow-off systems and fully hydraulic power trains for superior reliability. For customers looking to dig with air, you have the option to add a 185CFM @ 150PSI air compressor to your hydro excavation truck unit.

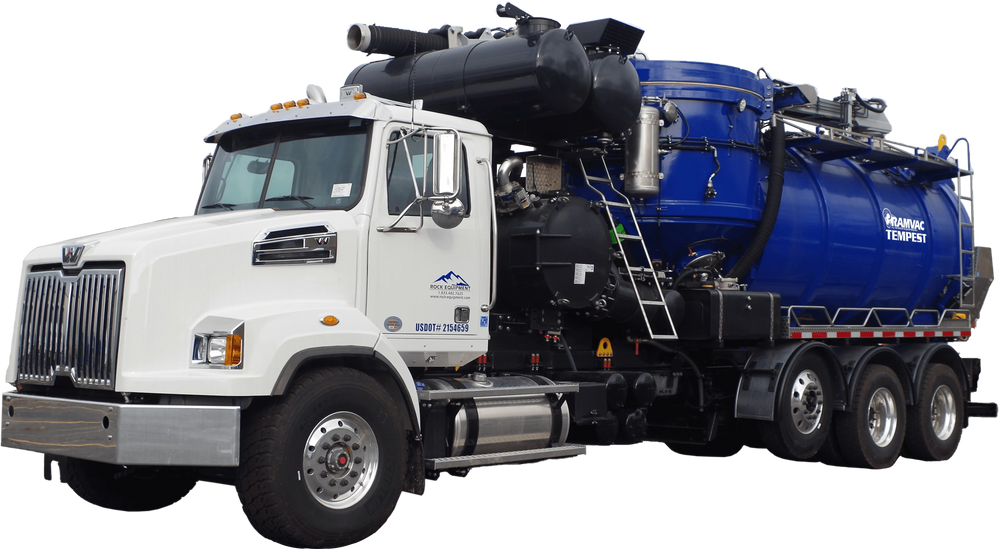

Its exclusive self-discharging filter system automatically cleans during operation, minimizing downtime and allowing operators to work until full debris capacity is reached, a capability unique in the industry.
The articulating, extendable Knuckle Boom offers 16 feet of working length with 270-degree rotation, improving ergonomics and efficiency. Paired with the Trident Wireless Remote, operators can safely maneuver the boom from a distance, reducing hazards and eliminating the need for two-man operation. With a fully opening rear door, 50-degree dump angle, and 50” ground clearance, unloading is fast and efficient. Additional options — including a hydro excavation package, body vibrator, boom catwalk with tie-offs, and grounding reel — ensure the Tempest can be customized for demanding job site needs while prioritizing operator safety.

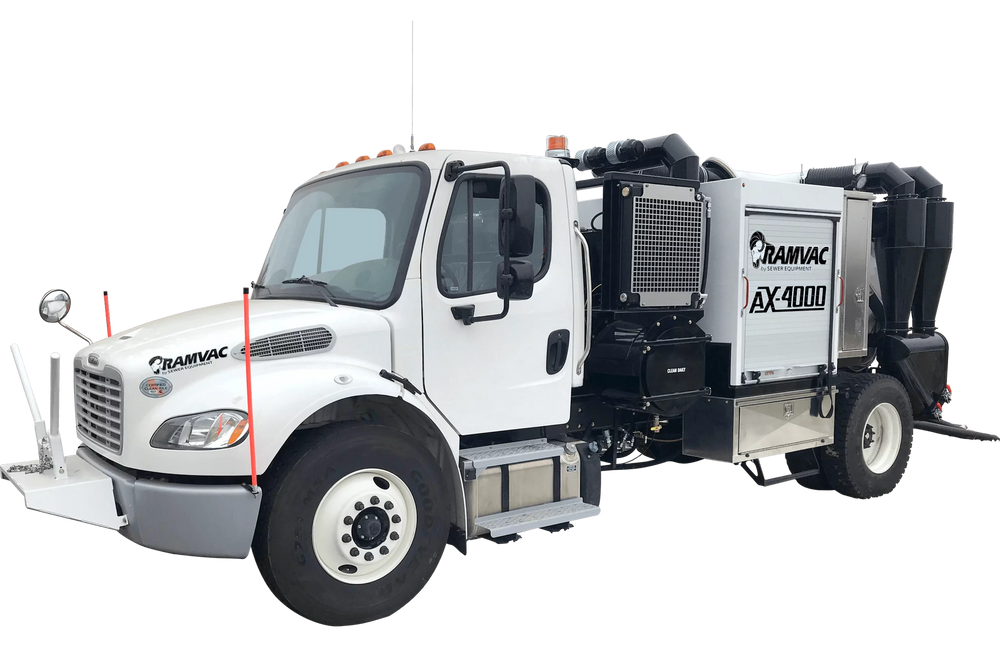

Built for simplicity and safety, the AX features ground-level access to major controls and maintenance points, along with 12-volt electrical controls and manual valves for easy field troubleshooting. It also offers the most standard tool storage in its class.
Operators can pothole with a 4” port or handle larger excavation jobs with a 6” port. Standard payload capacities range from 5,000 to 12,000 pounds, and a hydraulic rear door ensures fast, easy dumping.
With customizable blower options (18” or 27” Hg; 1400 or 3000 CFM) and the Dig Deep boom capable of reaching 10 feet below grade, the AX Series delivers powerful, flexible performance for any job.
Its single-engine design allows operators to run both systems with one truck, while all water components are housed in a heated enclosure for cold-weather performance. Built for simplicity and safety, the AX-XL offers ground-level access to controls and maintenance points, 12-volt electrical controls, and manual valves for easy field troubleshooting.
Operators can pothole with a 4″ port or handle larger excavation with a 6″ port. With customizable blower options (18″ or 27″ Hg; 1400 or 3000 CFM) and the Dig Deep boom reaching 10 feet below grade, the AX-XL delivers powerful, flexible performance for demanding jobs.
Since 1941, Sewer Equipment Co. of America has been engineering dependable, high-performance systems that set the standard for the industry.
Our products are trusted by professionals in markets across the world — built to work hard, last longer, and keep operations running efficiently.
For more than eight decades, Sewer Equipment has built a reputation for excellence — combining American craftsmanship, innovative engineering, and an unwavering commitment to customer success.
80+ Years of Experience
Global Reach
Built for Durability
Ready to experience the power, safety, and reliability of RAMVAC hydroexcavators? Getting started is easy.
Browse our full lineup of hydroexcavation trucks and configurations.
See RAMVAC performance firsthand on your job site.
Get expert guidance and customized recommendations for your operation.
See why contractors and municipalities nationwide rely on RAMVAC for safer digging, higher productivity, and long-term reliability in every environment.
